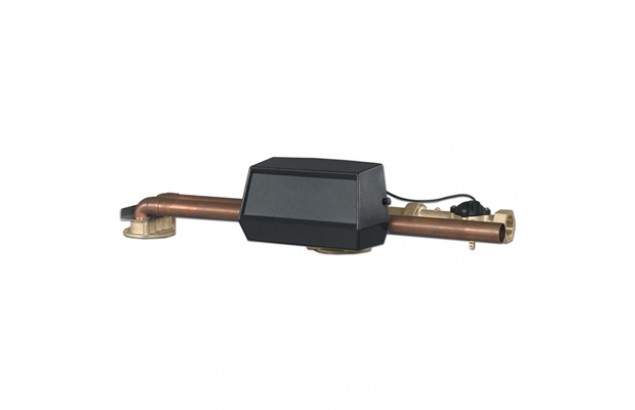

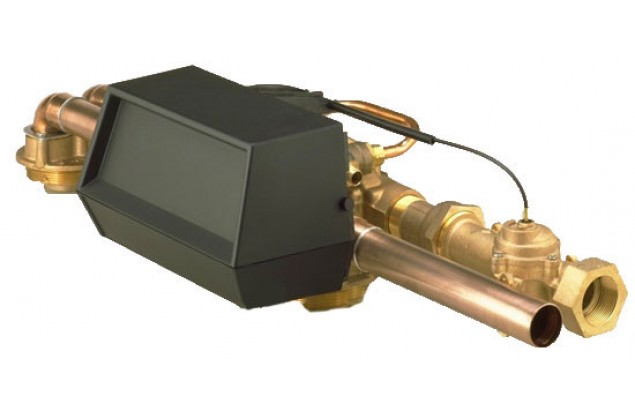

9500 |
| |
| Valve material |
Brass |
| Inlet/Outlet |
1,5 inch |
| Service flow rate (m3/h / gpm) |
8,4/37 |
| Backwash flow rate |
3,3 / 14 |
| Softener tank size |
10" - 24 " |
| Filter tank size |
N/A |
| Cycles |
Cycles: 5 |
| Electrical rating |
Electrical rating: 24 v, 110 v, 200 v - 50 Hz, 60 Hz |
| Distributor pilot |
Distributor pilot: 1.5" pipe I.D. |
| Drain line |
Drain line: 1" NPTM |
| Injector brine system |
Injector brine system: 1/2" & 3/8" |
| Brine line |
|
| 1700 1/2" |
| Mounting base |
Mounting base: 4" - 8 UN |
| Height from top of tank |
Height from top of tank: 7-1/4" |
| Hot water |
|
| Timer type |
3200/SXT/ET |
| Adjustable cycles |
• |
| NBP piston |
• |
| Duplex |
Twin |
| Multiplex |
|
